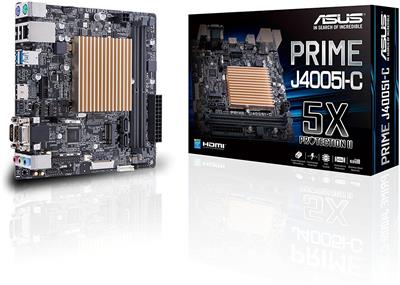

Mother C/Micro ASUS (PRIME J4005I-C) HDMI VGA DDR4
Código: MBCMIA
ARS 118733.57
Placa base de bajo consumo y sin ventilador para el procesador Intel Celeron® SoC J4005, con 2 x DDR4 2400/2133 MHz, 5X Protection II y compatibilidad con HDMI / D-Sub / LVDS.
Calidad probada: protección 5X. 1000+ dispositivos compatibles. Más de 8000 horas de validación.
AI Suite 3: acceso todo en uno a funciones innovadoras de ASUS
Nuevo UEFI BIOS y modo EZ: más amigable, más fácil e intuitivo con información útil agregada
CPU Intel® Celeron® Dual-Core J4005 SoC onboard Processors
Memory 2 x U-DIMM, Max. 8GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
Graphic Integrated Graphics Processor
Multi-VGA output support : HDMI/RGB/LVDS ports
- Supports HDMI with max. resolution 4096 x 2304 @ 24 Hz
- Supports LVDS with max. resolution 1920 x 1200 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 512 MB (for iGPU exclusively)
Supports up to 3 displays simultaneously
Storage
1 x M.2 Socket 3, , with M Key, type 2260/2280 storage devices support (PCIE mode)
2 x SATA 6Gb/s port(s),
GLAN
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
Audio
Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC *2
- Supports : Jack-detection, Front Panel Jack-retasking
USB Ports
Built-in Controller :
4 x USB 3.1 Gen 1 port(s) (2 at back panel, , 2 at mid-board)
Built-in Controller :
2 x USB 2.0 port(s) (2 at back panel, )
GL852G USB Hub :
4 x USB port(s) (4 at mid-board)
Motherboard Asus Prime J4005I-C HDMI con CPU Intel® Celeron Soc Dual-Core J4005 2.7GHz · Calidad comprobada – Protección 5X. Más de 1000 dispositivos?

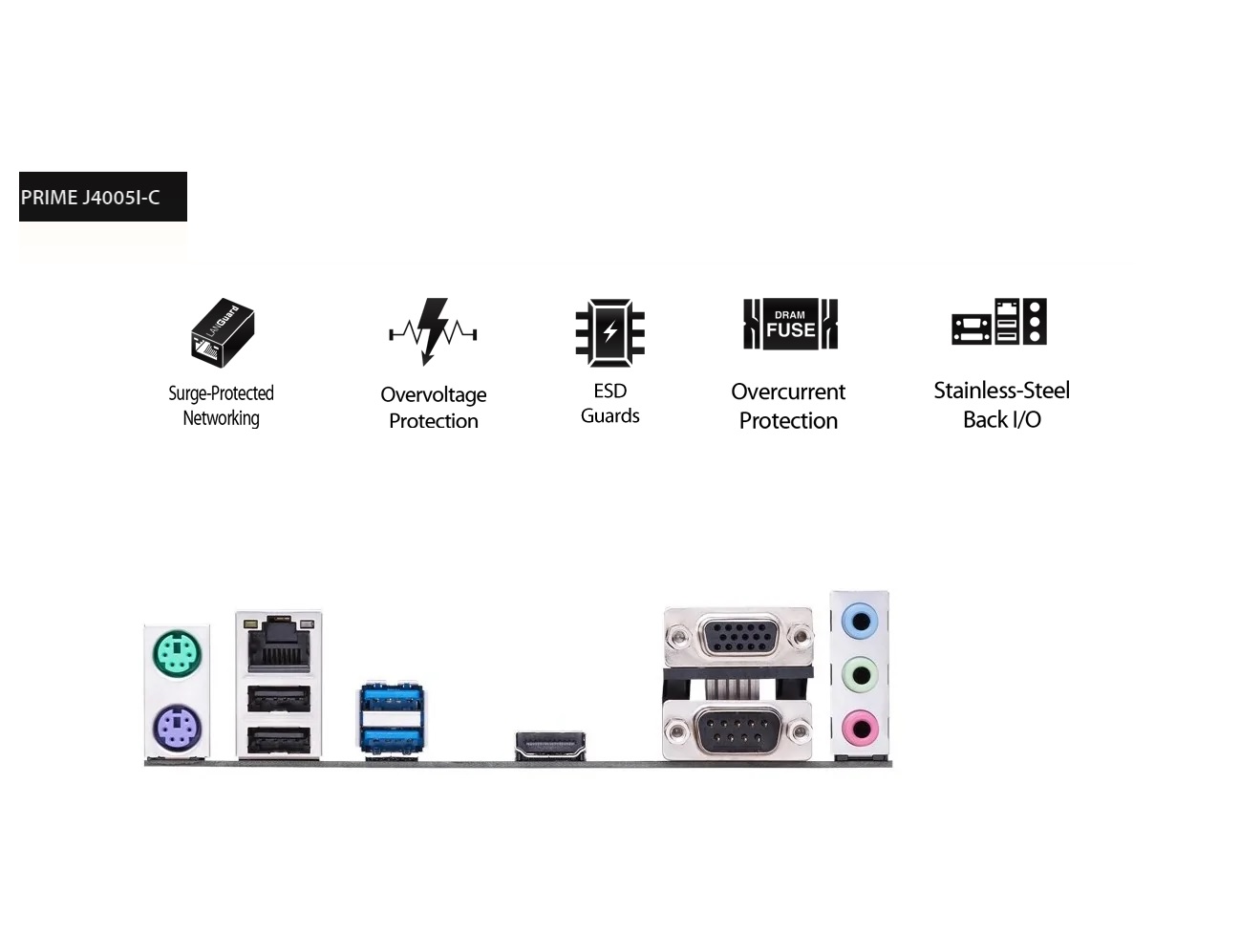

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
1 x HDMI
1 x GLAN (RJ45) port(s)
2 x USB 3.1 Gen 1 ,
2 x USB 2.0
1 x COM port(s)
3 x Audio jack(s)
PRIME J4005I-C - ASUS
